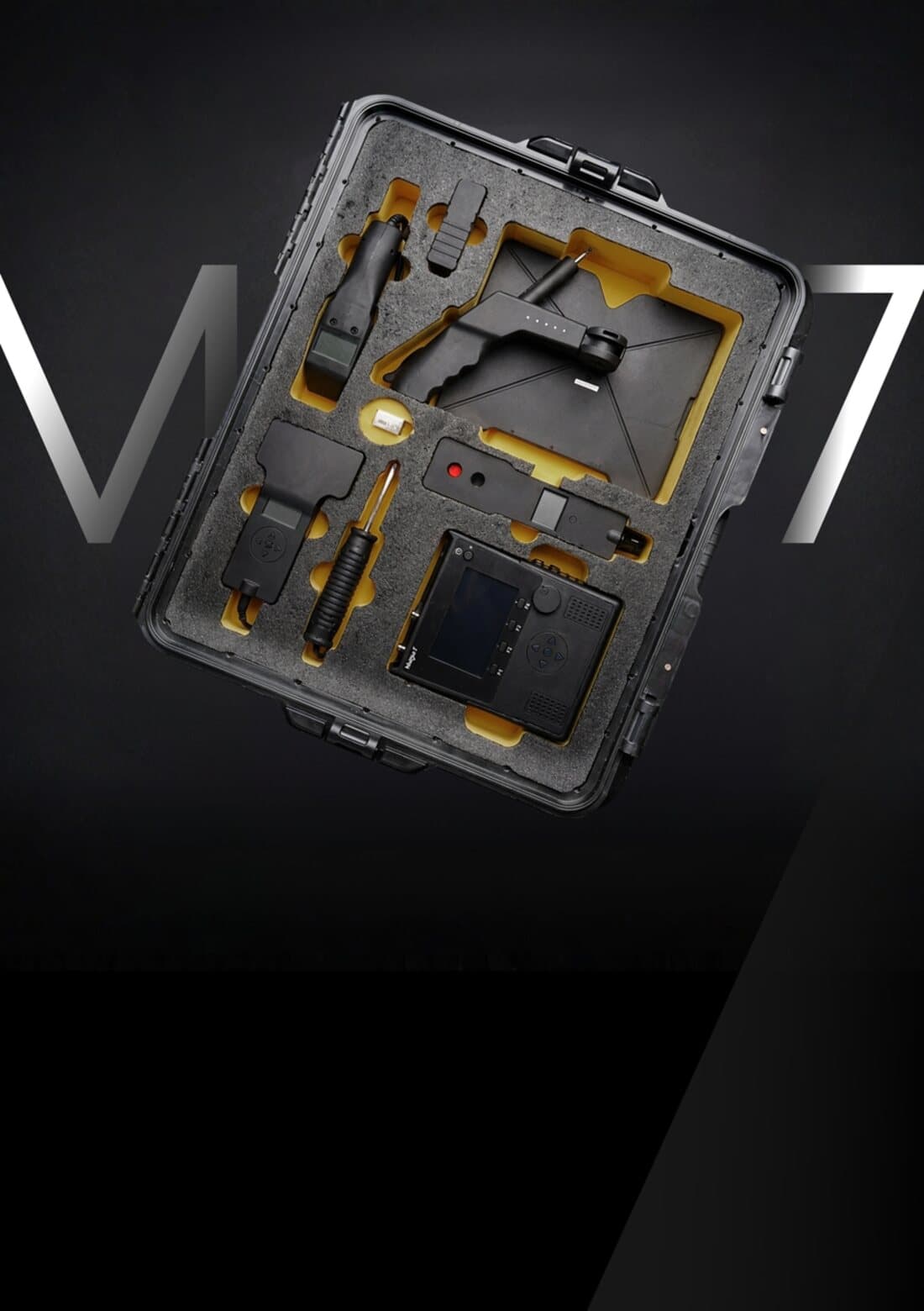

Complete surveillance detection, 50 kHz to 12 GHz.
One kit to detect, locate, and document hidden wireless and wired surveillance devices with precision — the instrument our operators carry into every sweep.
50 kHz–12 GHz
Detection frequency range
3 vectors
Wireless · wired · optical
1 cm
Localization accuracy
Direct hardware sale is pending Indonesian import and distribution licensing. Today the unit is available deployed within a Zentara engagement — or request a demonstration and we'll notify you when direct purchase opens.
Complete detection capability
Three vectors. One sweep.
A bug can transmit over the air, ride a cable, or watch through a lens. M7 covers all three in a single kit.
Wireless threat detection
- Covers 50 kHz – 12 GHz
- Detects GSM, 2G, 3G, 4G, 5G
- Wi-Fi, spread-spectrum & frequency-hopping
- Audio & video transmitters
Covers both legacy and modern surveillance technologies.

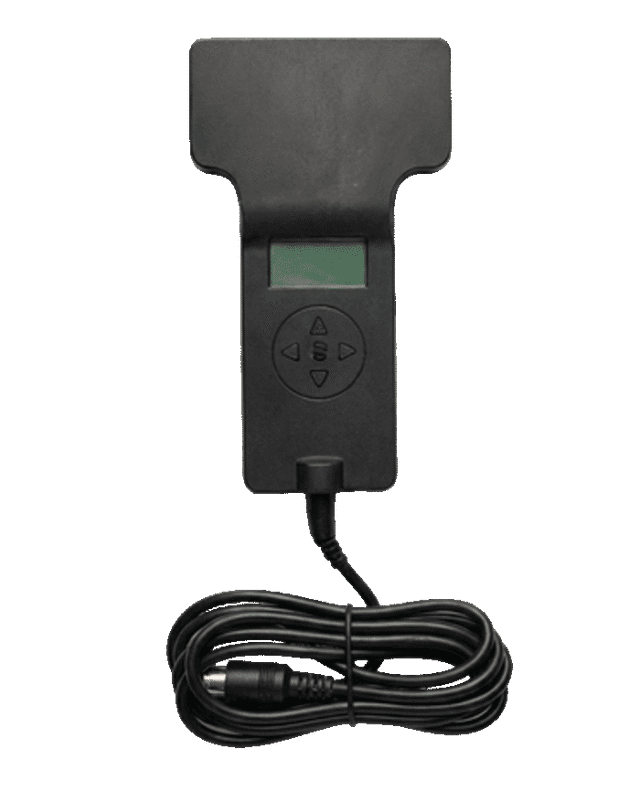

Wired threat detection
- Smart cable analyzer — LAN, RJ45, RJ11, spare cables
- Mains carrier probe — live-earth, live-neutral scanning
- Automatic scanning combinations
Faster sweeps. Reduced human error.

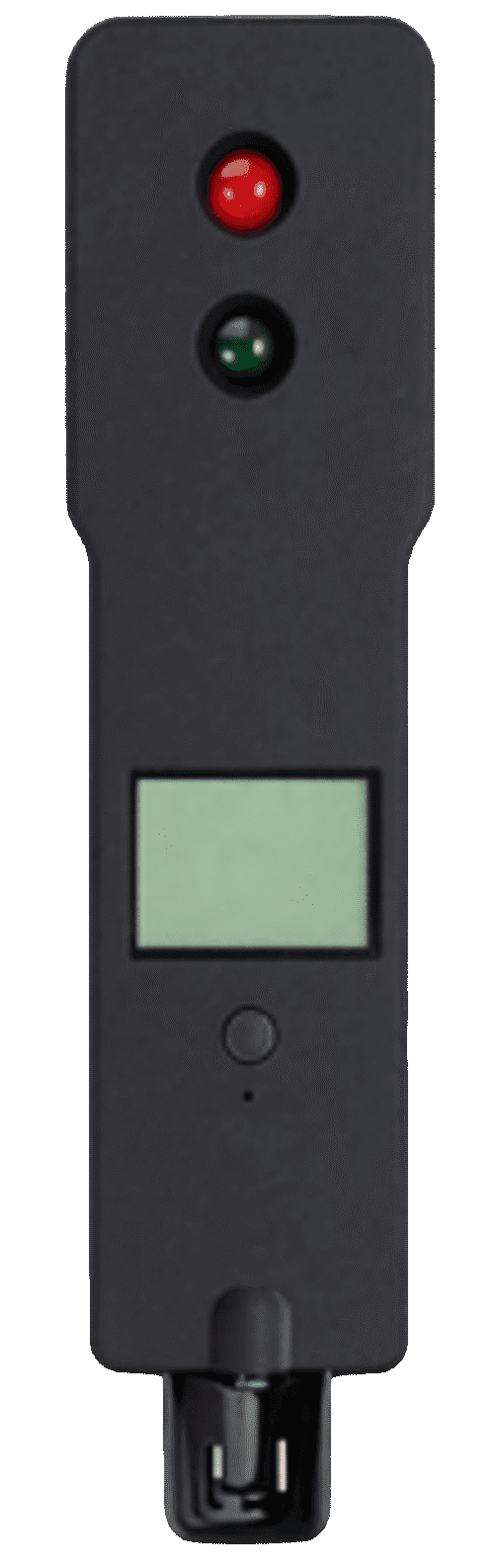

Hidden camera & optical detection
- Detects hidden camera lenses — even when powered off
- IR, laser & visible-beam transmitters
Complete physical inspection capability.

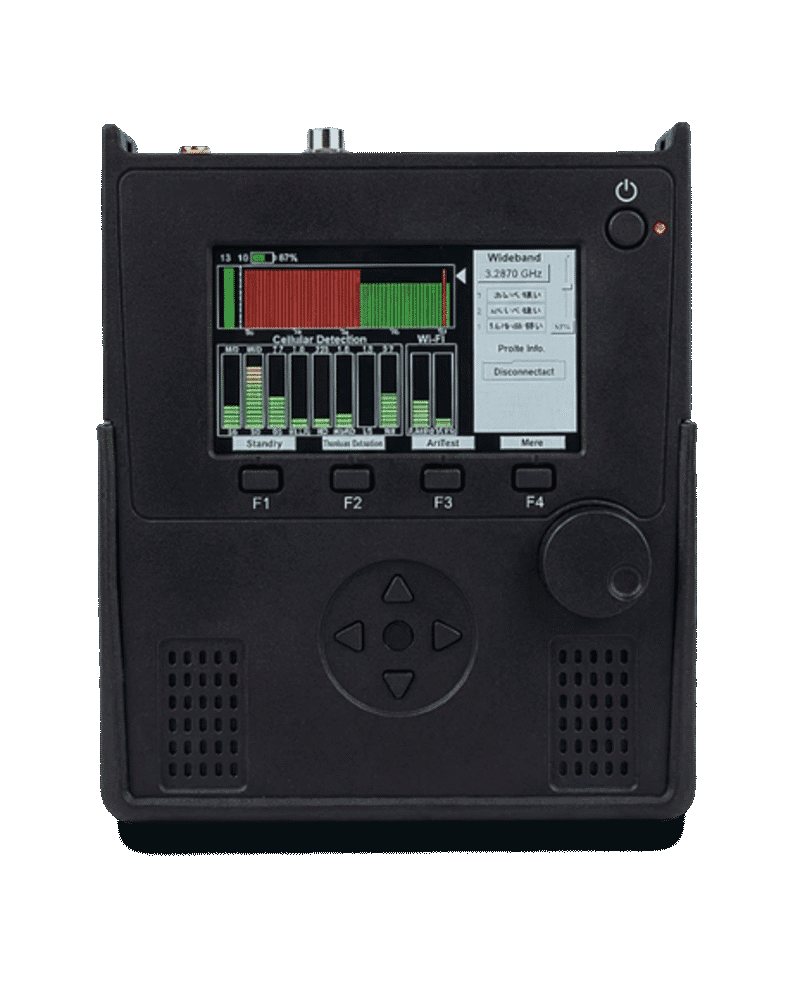

Precision intelligence control
Find the signal. Then find the source.
Detection is only half the job. M7's control unit turns a reading into a location — and a location into evidence — with live analysis on a high-resolution display.

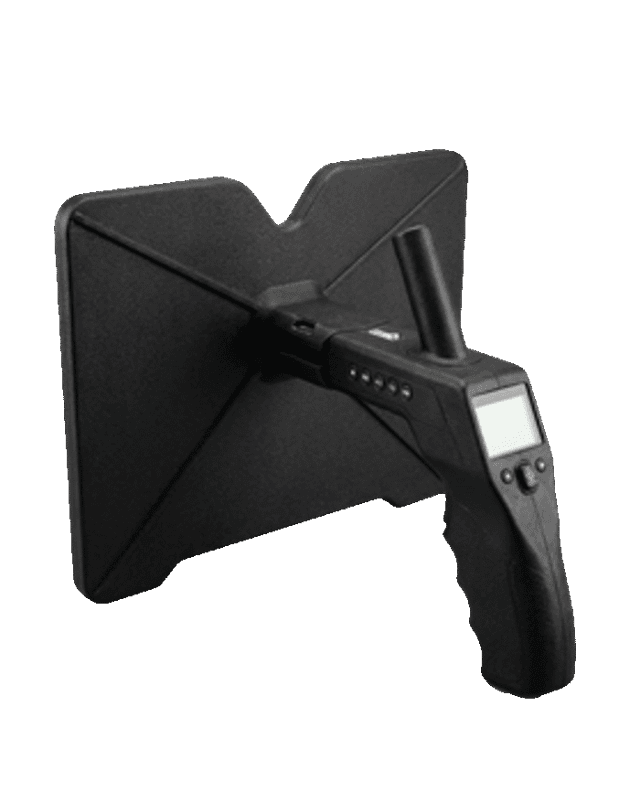

Intelligent RF probe
Auto-adjusting detection across omni-directional and directional antennas — identify and localize wireless transmitters fast.
- Omni-directional antenna
- Directional antenna
- Ultrasonic activation for VOX transmitters
Distance measurement
Close on the source, not just the signal. Pinpoint a transmitter down to a centimetre.
- Live signal analysis
- Pinpoint accuracy up to 1 cm
- VOX-aware localization
Recording & evidence
Keep full documentation for operational review or legal evidence — recorded on the device.
- RF signal recording
- Audio demodulation files
- Micro SD storage
Technical specifications
The spec sheet
Detector performance and the control unit at a glance.
Frequency range
50kHz
12GHz
Continuous 50 kHz – 12 GHz
Input impedance
50Ω
Power
USB-C
PD, or internal rechargeable LiPo
Sensitivity
−80dBm
Cellular & Wi-Fi
Display
4.3″
High-resolution TFT
Recording
Micro SD
RF + audio demodulation
Physical specifications
Size (control unit)
195 × 160 × 40 mm
Weight (control unit)
1 kg
Connectors
SMA (RF), LEMO (probe), USB-C, 3.5 mm
Operating temp
−10 to +65 °C
Controls
5-key navigation + rotary knob
Built for security professionals
Ideal for
- Government & defense
- Law enforcement
- Corporate security teams
- TSCM specialists
- Critical-infrastructure operators
One family · protect, detect, deny
M7 finds it. The family protects and denies.
Detect the implant with M7, then protect the room with the GT series — or let our operators run the whole sweep.
Secure your environment with confidence.
Request a live demonstration, or have Zentara's specialists run the sweep for you. Direct purchase is opening soon — request a demonstration and we'll keep you first in line.
